Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

  • 1
  • 2

Brand Name : Purescience

Model Number : 301-2

Certification : ISO9001 QMS / ISO14001

Place of Origin : China

MOQ : 1

Price : USD2500 - USD10000

Payment Terms : L/C, , T/T, D/P

Supply Ability : 20 pieces per month

Delivery Time : 4-6 weeks

Packaging Details : wooden case

Product name : Sludge dewatering press & thickner

Sludge Concentration : 2000 - 50000 mg/L

Dry sludge DS : 90- 180 kg / h

Feed reducer motor : 1 x 0.75 kw

Agitator reducer motor : 0.55 kw

Flush pump : 2 kg / cm2

Flush water flow : 43 L/h

DS water content : 75 - 80 %

Contact Now

Volute screw press sludge dehydrator for sewage treatment plant in food & beverage industry


Applications:

Municiapl sewage, petro refining, leather making, printing and dyeing, paper pulp, coalification dressing, biochemical, pharmacy, steel pickling and chemical sugar, food processing, beverage, etc.

Advantages:

  • Low operation cost: below 40% of belt press and 20% of centrifuge press
  • Lower power consumption: 5% less than centrifuge
  • Water save: 0.1% less than belt filter press
  • Chemcials save for around 60%
  • Compact space
  • Non-clogging, for oil, grease and fat contained sludge

Sludge treatment process:

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

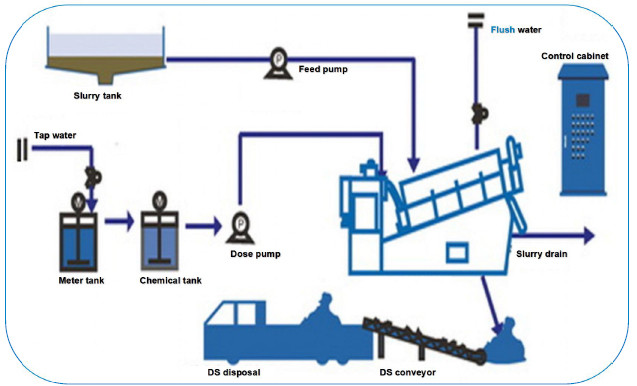

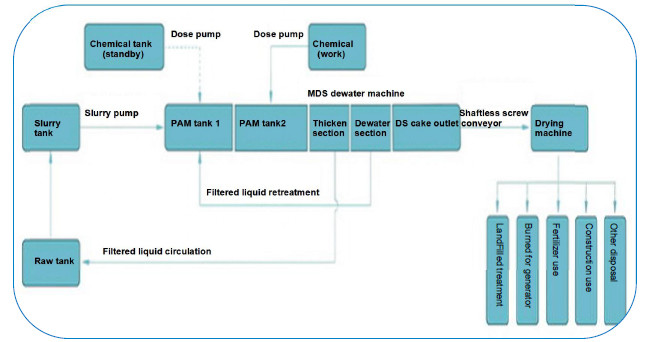

Flow diagram

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

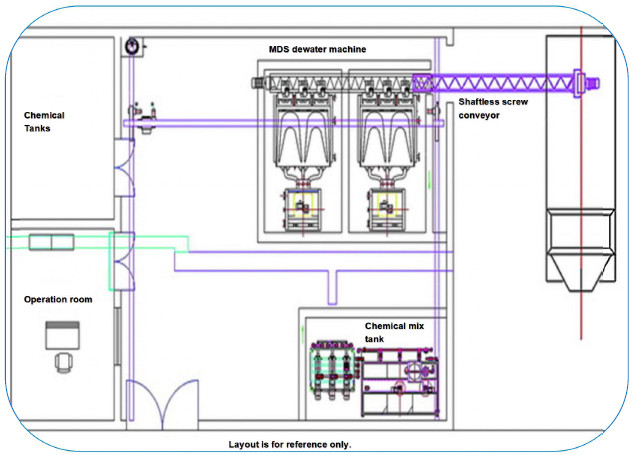

Layout

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

Specification

Model DS treatment capacity(DS.KG/H) Slurry Flow rate (M³/h)
10000mg/l 20000mg/l 25000mg/l 50000mg/l
(low concentration) (High concentration)
KTDL131 5 10 0.5 0.5 0.4 0.2
KTDL132 10 20 1 1 0.8 0.4
KTDL251 15 30 1.5 1.5 1.2 0.6
KTDL252 30 60 3 3 2.4 1.2
KTDL301 30 60 3 3 2.4 1.2
KTDL302 60 120 6 6 4.8 2.4
KTDL303 90 180 9 9 7.2 3.6
KTDL304 120 240 12 12 9.6 4.8
KTDL351 50 100 5 5 4 2
KTDL352 100 200 10 10 8 4
KTDL353 150 300 15 15 12 6
KTDL354 200 400 20 20 16 8
KTDL401 80 160 8 8 6.4 3.2
KTDL402 160 320 16 16 12.8 6.4
KTDL403 240 480 24 24 19.2 9.6
KTDL404 320 640 32 32 25.6 12.8

Advantages

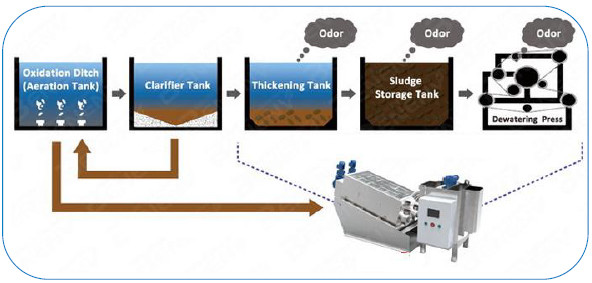

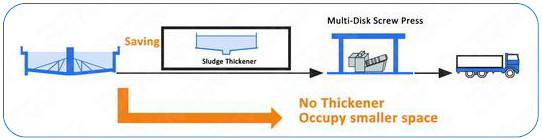

  • Direct dewatering from oxidation ditch

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

  • Widely application range

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

  • Clog free

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

  • Continuously operation

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

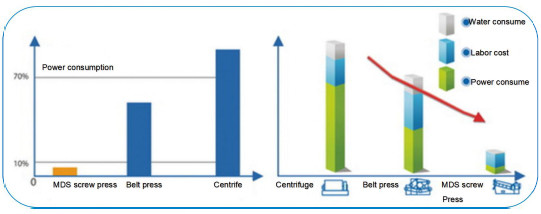

  • Save running cost

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

  • Contactless structure, less worn out

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

  • Minimal initial investment

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

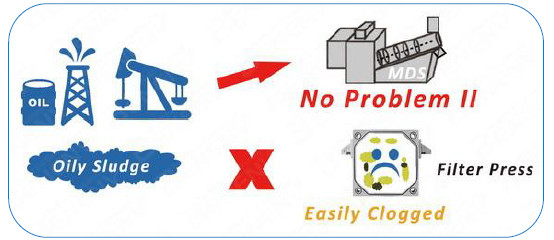

  • Oily sludge treatment

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

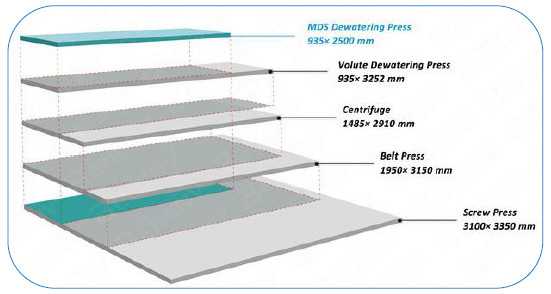

  • Small foot print

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

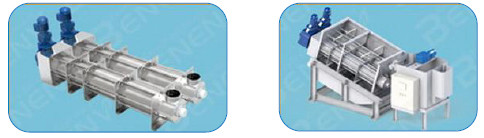

Options

The Sludge Dewatering Press offers a completely operational, skid mounted and self-contained system which can include:
• Screw Press
• PLC Controls
• Sludge Pumps
• Back Wash System
• Flocculation System
• Polymer Dosing Unit
• Sludge Cake Conveyor

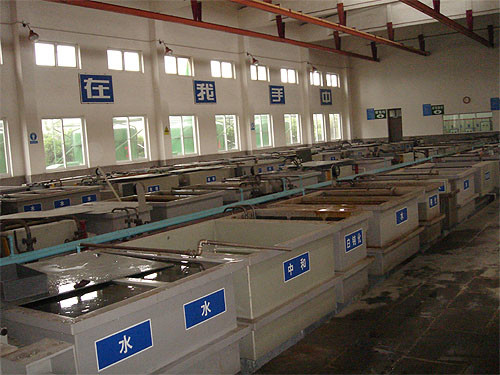

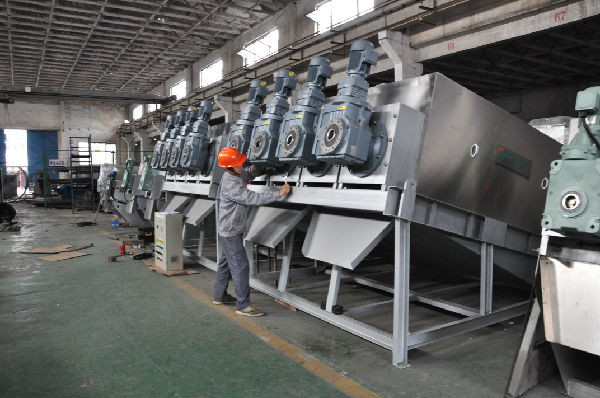

Production line

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

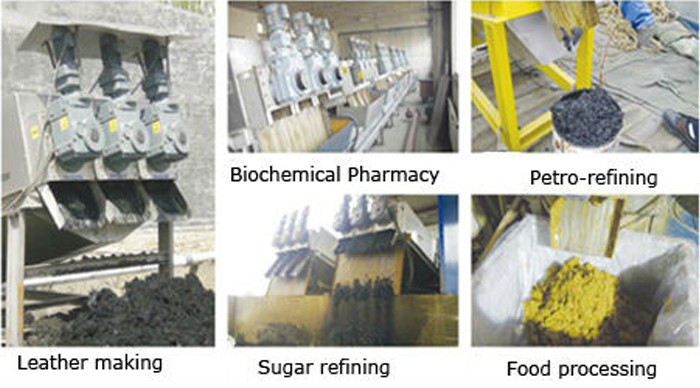

Applications

Municipal sewage petro refining leather making printing and dyeing paper paper & pulp
coalification dressing biochemical pharmacy steel pickling chemicals
sugar food processing food & beverage mining sludge treatment

Volute Screw Fully Automatic Filter Press Sludge Dehydrator For Sewage Treatment Plant In Food / Beverage Industry

Competitive advantage

Multi-Disk Screw Press is a cutting edge sludge dewatering equipment with non-clogging design and low energy consumption, especially applicable for oily sludge.
